Secure APIs using JWT (Self Contained) Access Tokens

JSON Web Token (JWT) is an open standard of transmitting information securely between two parties. As the tokens are digitally signed, the information is secured. The authentication and authorization process uses JWT access tokens. It is ideal to use JWT access tokens as API credentials because JWT access tokens can carry claims (data) that are used in order to authenticate and authorize requests.

MWARE ESB supports the use of self-contained and signed JWT formatted OAuth2.0 access tokens as API credentials. Therefore, you can use JWT formatted OAuth2.0 access tokens to authenticate any API that is secured using the OAuth2 security scheme. The App Developer can create an application via the Developer Portal, in MWARE ESB, in order to subscribe to an API. The applications in MWARE ESB use self-contained signed JWT formatted access tokens.

The gateway itself validates the API requests that are authenticated using the JWT access tokens.

Note

By default, JWT access tokens are not stored or retained after generation, leading to the generation of a new token for each access token request.

Prerequisites for JWT based tokens

The following prerequisites have to be satisfied for JWT based tokens to work.

  • Only signed JWT access tokens are allowed.

  • The expected token format is as follows:

    base64(header).base64(payload).base64(signature)

  • The public certificate of the private key that is used to sign the tokens should be added to the trust store under the "gateway_certificate_alias" alias. For more information, see Import the public certificate into the client trust store.

    Note

    The latter mentioned prerequisite is not applicable if you use the default certificates, which are the certificates that are shipped with the product itself.

Mandatory attributes of a JWT access token

The following are the mandatory attributes that are required for a JWT access token.

  • Header

    alg The algorithm which signs the token(e.g., RS256).

  • Payload

    sub The subject of the token, which identifies as to whom the token refers to.
    iat Token issued time
    exp The expiry time of the token.
    iss The claim identifies the principal that issued the JWT.

Using JWT access tokens

Follow the instructions below to work with JWT Authentication in MWARE ESB.

Step 1 - Access the Developer Portal

Sign in to the Developer Portal.

https://<hostname>:9443/devportal

Step 2 - Create a JWT access token based application

  1. Click Applications.

  2. Click ADD NEW APPLICATION. Add new application option

  3. Enter the application details. Let's create an application with the following details.

    FieldValue
    Application NameTestApp
    Per Token Quota10PerMin
    DescriptionTest App

    Create new application

Step 3 - Generate a JWT access token

  1. Click APIs and click on the PizzaShackAPI.

  2. Click Subscriptions.

  3. Select the application that you created and select a throttling policy.

  4. Click Subscribe.

    Subscribe to the API

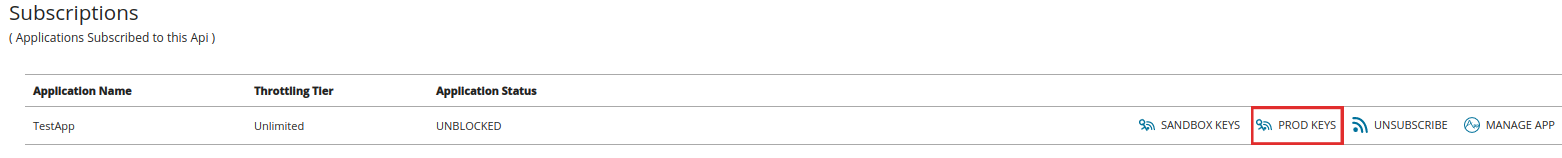

  5. Click PROD KEYS, which corresponds to the JWT based application.

    View list of credentials

  6. Click GENERATE KEYS to generate consumer key and consumer secret for the production OAuth2 application.

  7. Click GENERATE ACCESS TOKEN, click Generate, and copy the JWT.

Step 4 - Invoke the API using the JWT access token

Invoking an API with a JWT formatted access token is similar to invoking the API with a regular opaque access token. Use the cURL command below to invoke the API via the API Gateway.

curl -k -X GET  "<API_URL>" -H "accept: application/json" -H "Authorization: Bearer <JWT_TOKEN>"
curl -k -X GET "https://localhost:8243/pizzashack/1.0.0/menu" -H "accept: application/json" -H "Authorization: Bearer eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiIsIng1dCI6IlpqUm1ZVE13TlRKak9XVTVNbUl6TWpnek5ESTNZMkl5TW1JeVkyRXpNamRoWmpWaU1qYzBaZz09In0.eyJhdWQiOiJodHRwOlwvXC9vcmcud3NvMi5hcGltZ3RcL2dhdGV3YXkiLCJzdWIiOiJhZG1pbkBjYXJib24uc3VwZXIiLCJhcHBsaWNhdGlvbiI6eyJvd25lciI6ImFkbWluIiwidGllciI6IjEwUGVyTWluIiwibmFtZSI6IlRlc3RBcHAiLCJpZCI6MiwidXVpZCI6bnVsbH0sInNjb3BlIjoiYW1fYXBwbGljYXRpb25fc2NvcGUgZGVmYXVsdCIsImlzcyI6Imh0dHBzOlwvXC9sb2NhbGhvc3Q6OTQ0M1wvb2F1dGgyXC90b2tlbiIsInRpZXJJbmZvIjp7IlVubGltaXRlZCI6eyJzdG9wT25RdW90YVJlYWNoIjp0cnVlLCJzcGlrZUFycmVzdExpbWl0IjowLCJzcGlrZUFycmVzdFVuaXQiOm51bGx9fSwia2V5dHlwZSI6IlBST0RVQ1RJT04iLCJzdWJzY3JpYmVkQVBJcyI6W3sic3Vic2NyaWJlclRlbmFudERvbWFpbiI6ImNhcmJvbi5zdXBlciIsIm5hbWUiOiJQaXp6YVNoYWNrQVBJIiwiY29udGV4dCI6IlwvcGl6emFzaGFja1wvMS4wLjAiLCJwdWJsaXNoZXIiOiJhZG1pbiIsInZlcnNpb24iOiIxLjAuMCIsInN1YnNjcmlwdGlvblRpZXIiOiJVbmxpbWl0ZWQifV0sImNvbnN1bWVyS2V5IjoiWWpfVWVmaHRpdjE1Tm1meDFBOFJqUldDVGY0YSIsImV4cCI6MTU3MTkxNTQ0MSwiaWF0IjoxNTcxOTExODQxLCJqdGkiOiI3NjU3Yjk3OC1jZjc1LTRjMWUtYmFmOC02OGJiZDFkMWEyNjMifQ.BBXefDL4DeePYIzBZdZDE_fJDZVza4e0qBU7_Xwrtjut66NKx4xOv8zyjEELudo_q15fpcb0_bwZ4fwRbKECz_TXIH08snivqH0IgDNJDGbEocBbQBj0nQa6eL363lxkDjq-sTrEdKgXjr9rwdEh5SJWE6pkM9rHlLWMFpJKEWOPp726DRqOC60BERvdcHGTN5Bhh029o4eGCFINfzmfpu6bwFqOTIgk9O70WhoYZIi-YiZnG3HHp4kV3T8r3JoW4Ywuy1ANKC3U1cCKHbSS_LmrkM6Z7AR8T_kigCZq0qvMz-8tqEjauUf8avOnpF5GXozDJzU-Y7nwWpmQnIWpwA"
[
   {
      "name":"BBQ Chicken Bacon",
      "description":"Grilled white chicken, hickory-smoked bacon and fresh sliced onions in barbeque sauce",
      "price":"24.99",
      "icon":"/images/6.png"
   },
   {
      "name":"Chicken Parmesan",
      "description":"Grilled chicken, fresh tomatoes, feta and mozzarella cheese",
      "price":"27.99",
      "icon":"/images/1.png"
   },
   {
      "name":"Chilly Chicken Cordon Bleu",
      "description":"Spinash Alfredo sauce topped with grilled chicken, ham, onions and mozzarella",
      "price":"13.99",
      "icon":"/images/10.png"
   },
   {
      "name":"Double Bacon 6Cheese",
      "description":"Hickory-smoked bacon, Julienne cut Canadian bacon, Parmesan, mozzarella, Romano, Asiago and and Fontina cheese",
      "price":"26.99",
      "icon":"/images/9.png"
   },
   {
      "name":"Garden Fresh",
      "description":"Slices onions and green peppers, gourmet mushrooms, black olives and ripe Roma tomatoes",
      "price":"18.99",
      "icon":"/images/3.png"
   },
   {
      "name":"Grilled Chicken Club",
      "description":"Grilled white chicken, hickory-smoked bacon and fresh sliced onions topped with Roma tomatoes",
      "price":"11.99",
      "icon":"/images/8.png"
   },
   {
      "name":"Hawaiian BBQ Chicken",
      "description":"Grilled white chicken, hickory-smoked bacon, barbeque sauce topped with sweet pine-apple",
      "price":"25.99",
      "icon":"/images/7.png"
   },
   {
      "name":"Spicy Italian",
      "description":"Pepperoni and a double portion of spicy Italian sausage",
      "price":"16.99",
      "icon":"/images/2.png"
   },
   {
      "name":"Spinach Alfredo",
      "description":"Rich and creamy blend of spinach and garlic Parmesan with Alfredo sauce",
      "price":"22.99",
      "icon":"/images/5.png"
   },
   {
      "name":"Tuscan Six Cheese",
      "description":"Six cheese blend of mozzarella, Parmesan, Romano, Asiago and Fontina",
      "price":"10.99",
      "icon":"/images/4.png"
   }
]

Additional Information

Importing the public certificate into the client trust store

Follow the instructions below to import the public certificate into the client trust store.

  1. Navigate to the <API-M_HOME>/repository/resources/security/ directory.

  2. Run the following command to export the public certificate from MWARE ESB's key store (wso2carbon.jks).

    keytool -export -alias wso2carbon -file wso2.crt -keystore wso2carbon.jks

  3. Enter wso2carbon as the default password of the key store when prompted.

  4. Run the following command to import the public certificate into the trust store.

    keytool -import -trustcacerts -keystore client-truststore.jks -alias gateway_certificate_alias -file wso2.crt
  5. Enter wso2carbon as the default password of the trust store when prompted.

Validating JWTs generated by external OAuth providers

JWTs generated by an external OAuth provider can be validated by the gateway as per the following diagram.

Signature validation

External JWT Signature Validation

In order to do the signature validation of JWTs, you can use one of the following options.

  • Import the public certificate into the client-truststore.jks located at <API-M_HOME>/repository/resources/security/ with the kid value of the certificate as the alias.

    If kid is not present in JWT, it will validate with the public certificate under gateway_certificate_alias alias from client-truststore.jks.

  • Use the JWKS endpoint of the OAuth provider. (kid value should be present in JWT)

    1. Navigate to the deployment.toml under the <API-M_HOME>/repository/conf/ folder.
    2. Add the following configuration under the [[apim.jwt.issuer]] with the issuer details.
    [[apim.jwt.issuer]]
    name = "<issuer value of jwt>"
    [apim.jwt.issuer.jwks]
    url = "<jwks endpoint of oauth provider>"
    [[apim.jwt.issuer]]
    name = "https://localhost:9443/oauth2/token"
    jwks.url = "https://localhost:9443/oauth2/jwks"

    [[apim.jwt.issuer]]
    name = "wso2is"
    jwks.url = "https://localhost:9445/oauth2/jwks"

Important

The JWTs generated by external OAuth providers can be validated only if the tokens are signed by an asymmetric algorithm such as RS256. Symmetric algorithms such as HS256 are NOT supported in the validation flow.

JWT claim transformation

In order to convert the incoming JWT claims into desired claims, you can configure the claim mapping as below.

  1. Navigate to the deployment.toml under the <API-M_HOME>/repository/conf/ folder.
  2. Add the claim mapping as following under the [[apim.jwt.issuer]].
    [[apim.jwt.issuer.claim_mapping]]
    remote_claim = "<remote claim value>"
    local_claim = "<local claim value to map>"
    ....
    By default, the claim mapping is done in a one-to-one manner. But, if the mapping needs to be done in an advanced manner, the users can write custom JWT transformers which can be attached to each token issuer.

Scope validation

By default, the MWARE ESB validates the scopes coming in the scope claim of the JWT. If the JWT contains the scopes in a different claim, users can map that claim into the scope claim as per JWT claim transformation section.
